Anti-Static Laminated False Flooring

Anti-Static Laminated False Flooring

The panel is made of good cold rolled steel sheet, which are punched, spot- welded, coated with epoxy powder. lnside of the panel is filled with foamed cement. The top steel sheet of the panel is stuck with fireproof High pressure Laminate (HPL) or conductive PVC tile. The borders of the panel are trimmed with antistatic PVC edges. Advantages and Applications
Fast, Easy and Accurate installation Completely non-combustible: Class A flame spread and smoke development rating

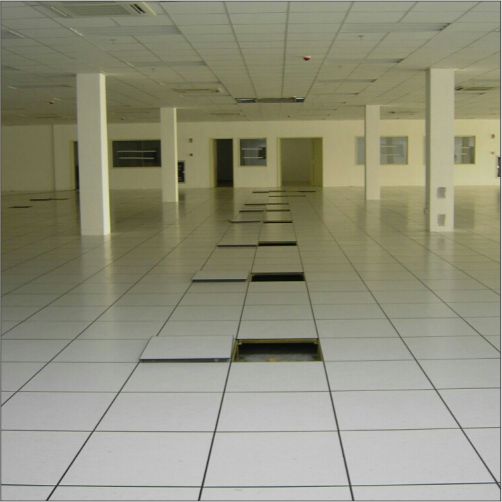

Excellent rolling load ultimate load performance Epoxy paint finish for lifetime protection Typically used in office areas, electrical rooms, server rooms and conference rooms

Technical Details:

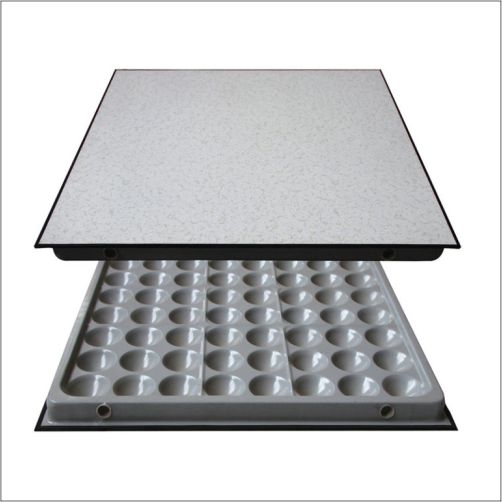

1. TILES

•  Size 600mm x 600mm
•  Thickness: 35mm
•  All steel construction with powder coated finish and cavity filled with cement slurry

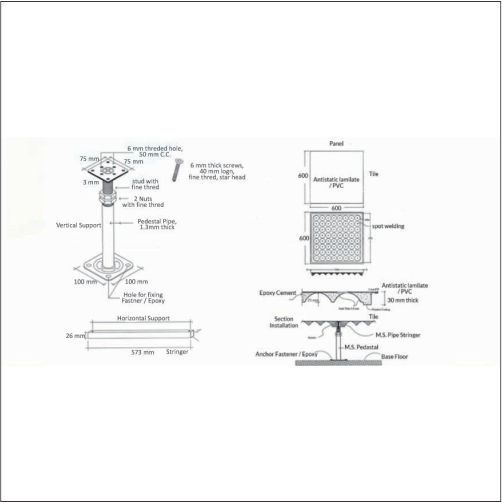

2. PEDESTAL

•  All steel construction zinc plated
•  Threaded bolt and nut for level adjustment
•  Top plate size: 75mmx75mmx3mm
•  Bottem plate size: 100mm x 100mm x 2mm
•  pipe thickness: 1.3mm
•  various Heights available
•  25 mm Dia

3. STRINGER

• All steel construcation zinc plated
• Size: 21mmx31mmx570mm
• Thickness: 0.8mm
• Shape: Seamless rectangular shape
• Hole Distance: 550mm (center to center)
